Hushbox
A few photos of the DIY hushbox I built for my projector.
Date: 2007.07.29
Size: 3 items
Views: 5920
Hushbox (Rear)
Item ActionsHushbox (Rear)

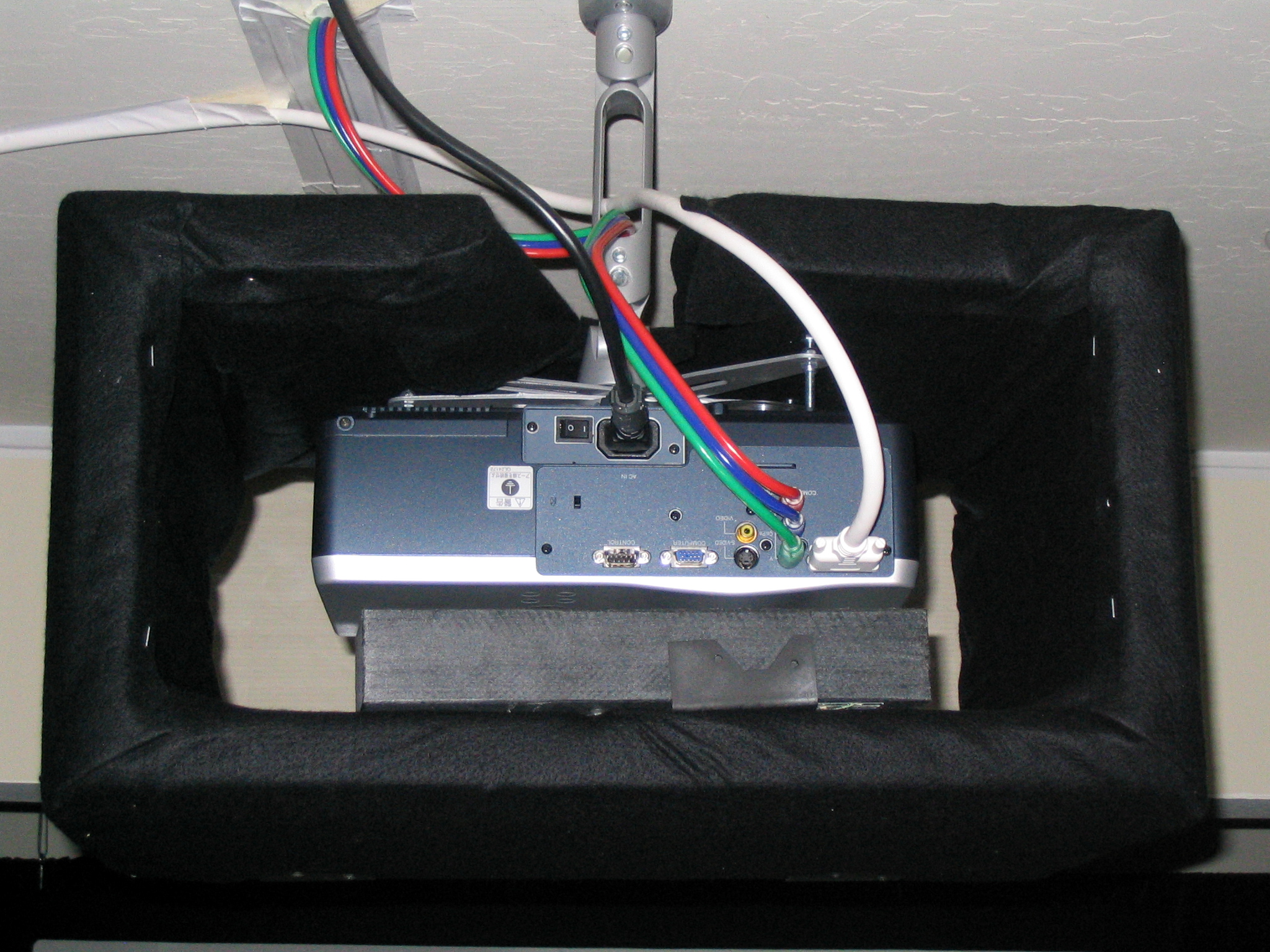

A rear view of the hushbox.
Date: 2005.06.04
Views: 2520
A rear view of the hushbox. The frame is held by the projector ceiling mount. The opening in the top is cut so as to prevent the frame from actually touching the projector. The black felt is stapled onto the insulating foam interior. A pair of construction brackets are used to hold a mass block in place to counterbalance the heavier acrylic front. 2005.06.04
View Slideshow
Hushbox (Side)
Item ActionsHushbox (Side)

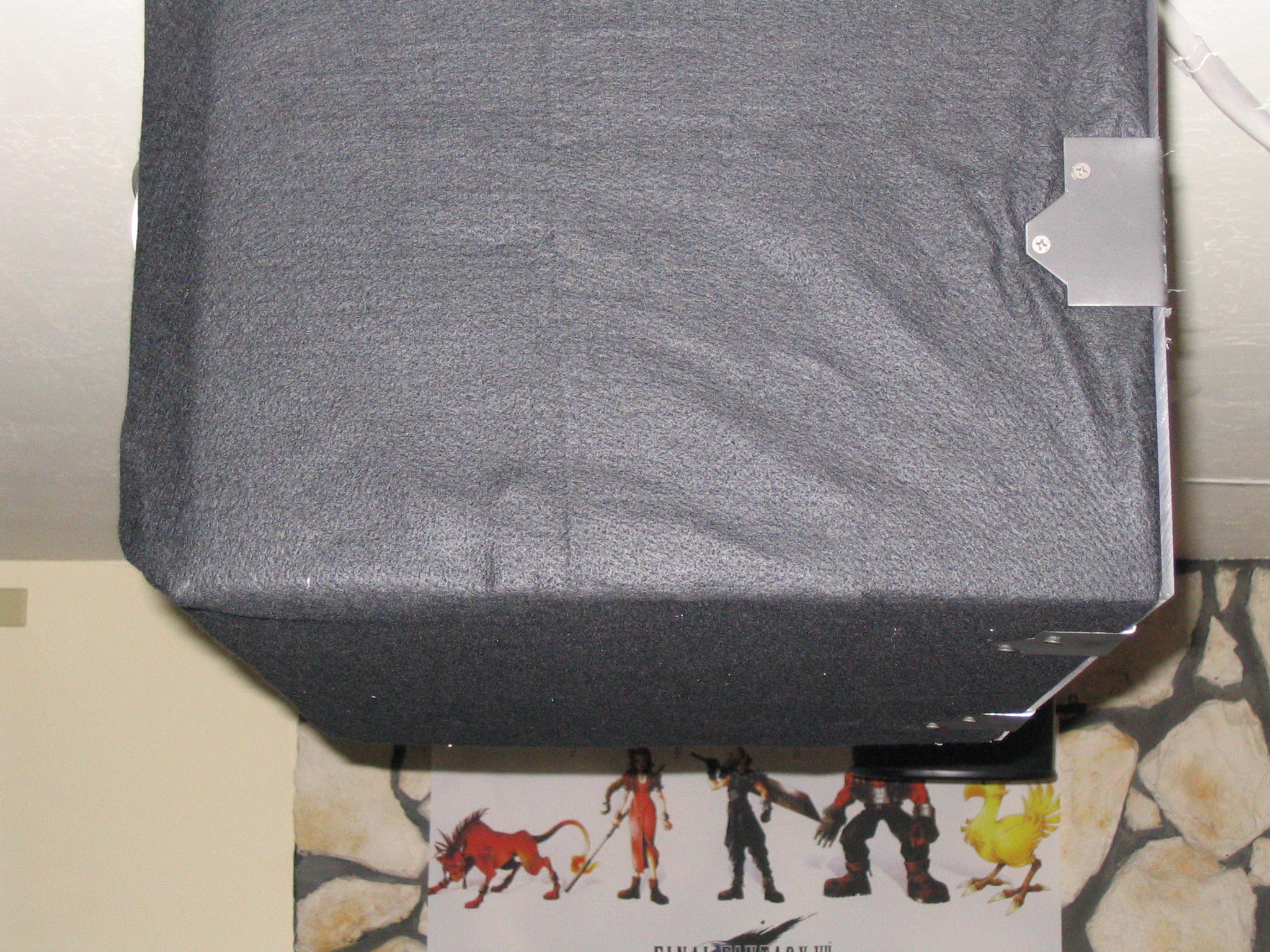

A side view of the hushbox.
Date: 2005.06.04
Views: 3797
A side view of the hushbox. Notice at the rear how the insulating foam extends past the wooden frame to soften head collisions. The bracket holding the acrylic plastic in place is screwed into the wooden frame. 2005.06.04
View Slideshow
Hushbox (Perspective)
Item ActionsHushbox (Perspective)

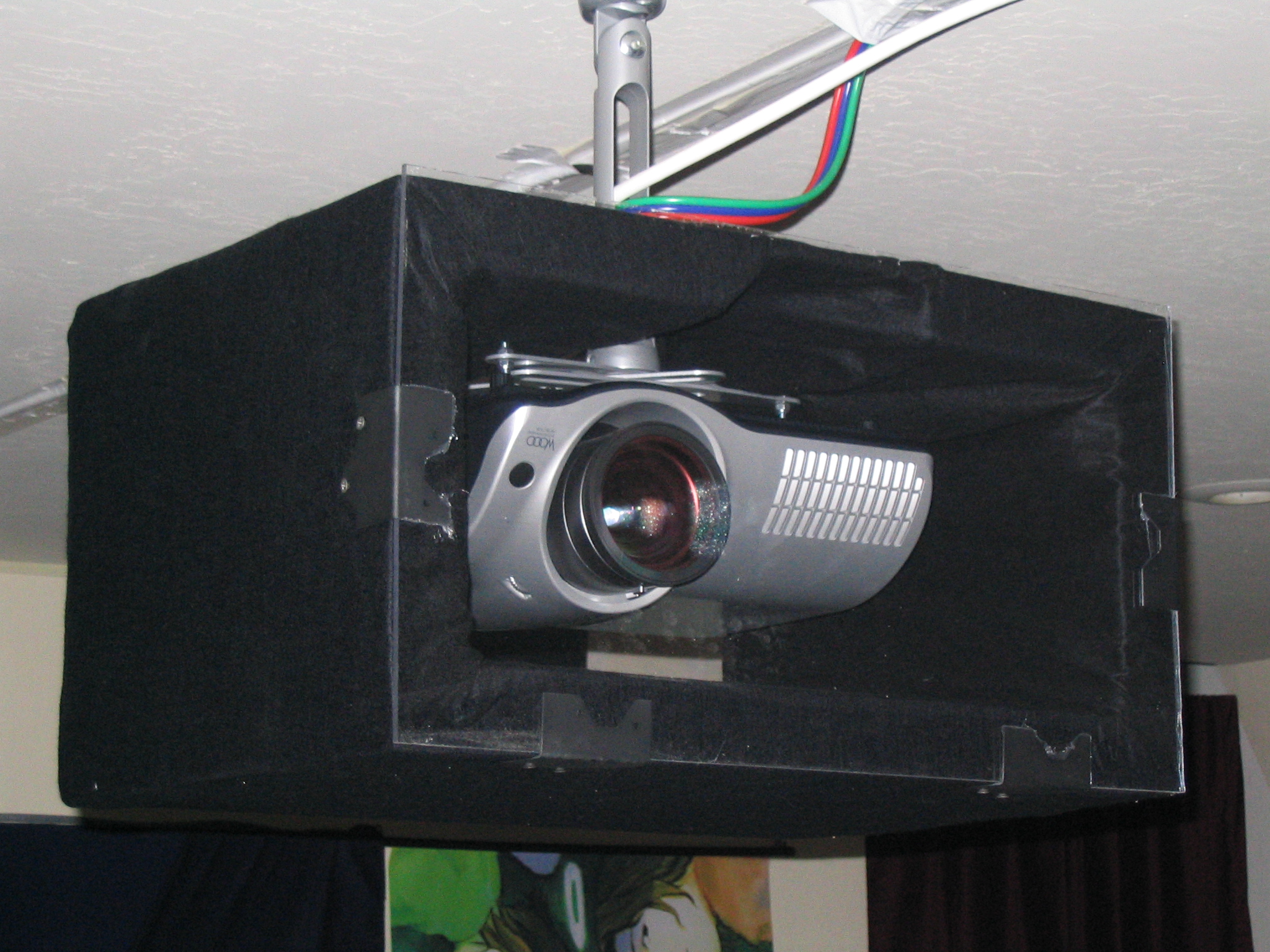

A perspective view of the finished hushbox.
Date: 2005.06.04
Views: 2162
A perspective view of the finished hushbox. The hushbox was built using 1/4" plywood for the bottom and sides, and 1/2" plywood for the top. Liquid nails and angle braces were used to secure the frame. The front is 1/4" acrylic plastic, held tight against the frame by construction brackets spray-painted black. The interior is lined with 1 1/2" insulation foam. The frame is covered in black felt. 2005.06.04
